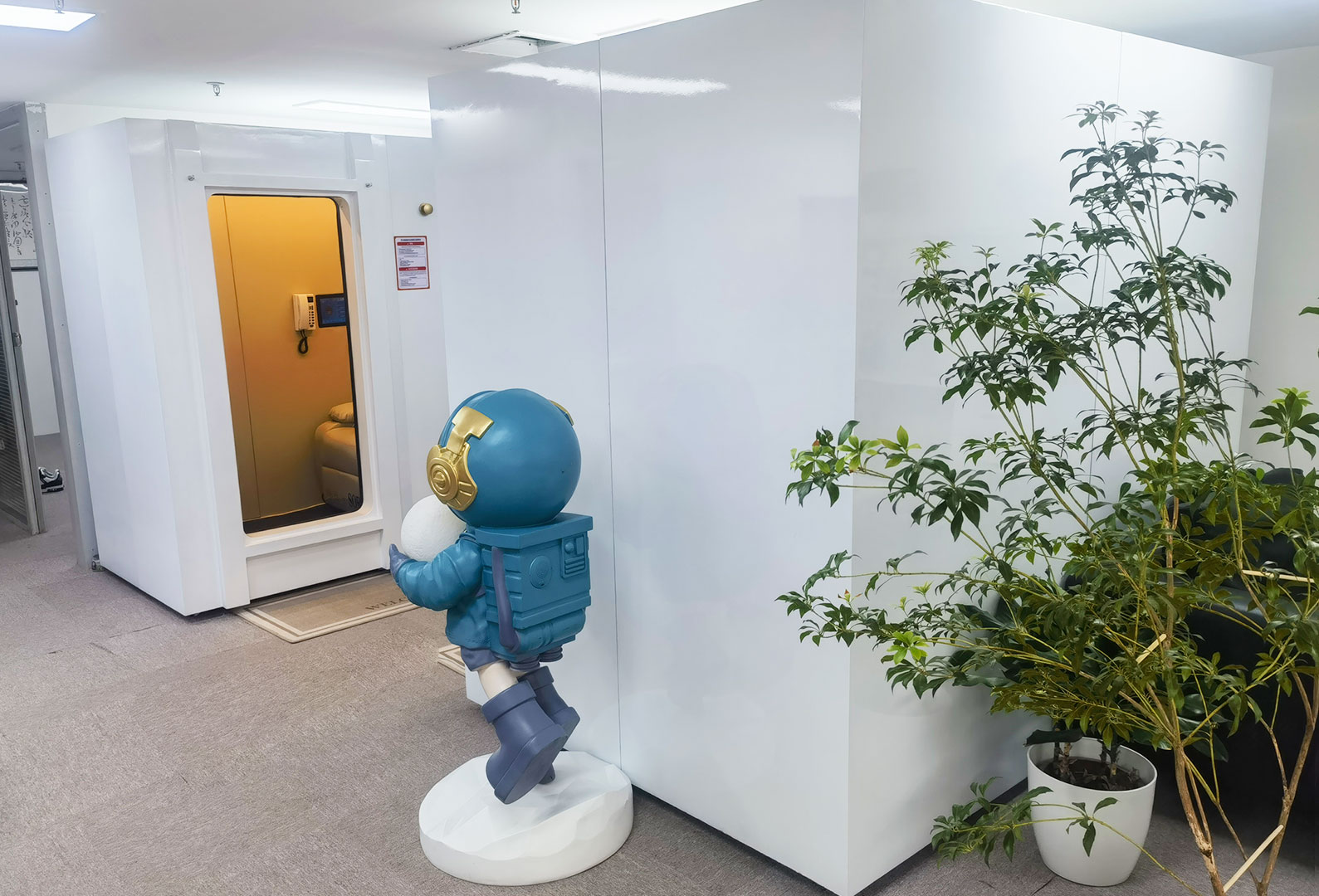

Introduction to the Dual-Person Hyperbaric Oxygen Chamber
The dual-person hyperbaric oxygen chamber is a state-of-the-art therapeutic device designed for safe and efficient hyperbaric oxygen therapy (HBOT). It features a fully enclosed pressurized environment where users inhale 100% pure oxygen under increased atmospheric pressure. Unlike single chambers, the dual design allows two individuals to undergo treatment simultaneously, enhancing convenience for couples or caregivers and patients. This chamber is equipped with user-friendly controls, automated pressurization, and robust safety features, ensuring a smooth and secure experience for all users.
Benefits and Advantages
-
Enhanced Oxygen Delivery: Pressurized pure oxygen promotes better oxygen diffusion into tissues, aiding cellular repair and regeneration[
-
Accelerated Healing: Especially effective for wounds, infections, and recovery from surgery or radiation injury.
-
Reduced Inflammation: Beneficial for inflammatory conditions and sports-related injuries.
-
Dual Occupancy: Supports emotional well-being and efficient treatment for two individuals simultaneously.
-
Portable Design: Inflatable and space-efficient, suitable for both home and clinic use.
| Parameter | Chamber outside dimension | L2200*W1700*H2000 |
| Volume/person | Double，7.48m3 | |
| Chamber material | High strength special steel T610, 6mm thickness | |
| Aviation porthole | φ30*2 | |
| Surface coating | Art paint (picture color) | |
| Sealed hatch | CNC integrated frame + aviation PC double seal | |
| Assembly method | Segmented assembly, weight 2150Kg | |
| Delivery type | Monolithic，weight1750Kg | |
| Cabin assembly | Lighting system | LED cold light source dual system lighting + atmosphere light |
| Inhalation method | Diffuse/nasal inhalation | |
| Audio and video system | ||
| Air conditioning system | Independent air conditioning system (water cooling) | |
| Sofa function | Single-seat multi-purpose or double-seat ordinary | |
| Sensor system | Oxygen concentration, temperature, humidity, PM2.5 | |
| Control system | Dual 10-inch control screen inside and outside the cabin*2 | |
| Dialogue System | Standard | |
| Core Host | Model | AHZJ/H-20 |
| Compressor configuration | Medical silent oil-free piston, three compressors, 300KPA, 520L/min flow |
|
| Oxygen Molecular Sieve | Imported lithium-based molecular sieve, 10L/min, 93% concentration, 140kpa pressure | |
| Pressure | 10-30KPA/60KPA/100KPA |
